ALL FEATURES FOR ALL THREE EDITIONS  PLEASE READ CAREFULLY

Product:                     PF-Diagnose,  ALL Heavy Diesel Diagnostic Software

COMPATIBILITY:       Desktop or Laptop

Requirements:

  • Windows XP ,Vista 32, or Windows 7

  • 512 Mb Ram 2mb Recommended

  • 1024x768 screen resolution

  • RP1210A or B Com adapter and cables Required J2534 Pass-Thru Supported on OBD-II edition

  • Tested on 32 and 64 bit operating systems

COVERAGE: J1708/J1587/J1939 / 1999 Model Year or newer for OEM Codes

Older vehicles may be Generic codes only (HD Only Editions)

J1708/J1587/J1939 /J1850PWM/J1850VPW/ISO9141/ISO14230/ISO15765/CAN (HD with OBD-II Edition)



IF YOU HAVE A PREVIOUS VERSION AND NEED AN UPDATE

EMAIL and a link will be sent out.

Updates are free for 12 months from date of purchase, or check the Versions Page



Compatibility is for PF-Diagnose ONLY, Adapter Driver's may or may not be compatible with all of the windows versions above, contact your adapter manufacturer for the latest drivers if available. Free Updates and support does not include upgrades to other editions.

Basic Editions get updates and support for Basic Only, Full Editions include Updates and support for Full Versions Only and OBD + Editions get support and updates for OBD + editions only

MORE DIAGNOSTICS FOR MUCH LESS



NOW AVAILABLE IN 3 EDITIONS

BASIC (GENERIC  ONLY)  HD Edition - No OEM code definitions or flash codes and only basic features No OBD-II

FULL HD Edition - Supports Thousands of OEM Flash codes and definitions plus all added features and available diagnostic tests. No OBD-II

FULL HD Edition with OBD-II - Supports Thousands of OEM Flash codes and definitions plus all added features and available diagnostic tests.

See List Of Features



Tried it on a 2012 NPR. Pulled codes, live data, and best of all forced regen worked!

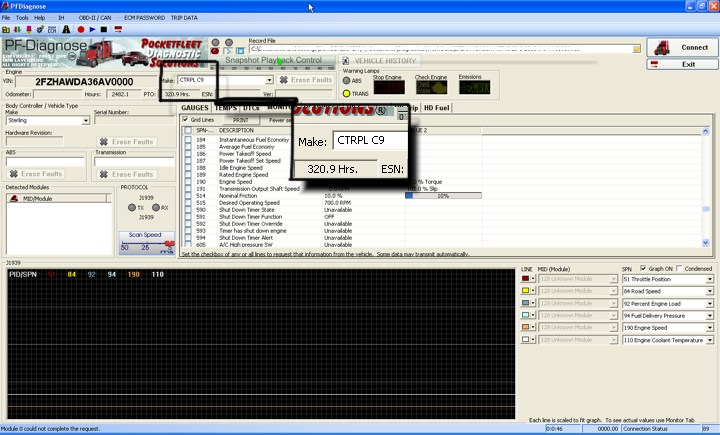

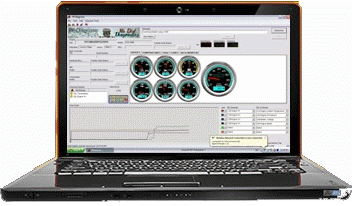

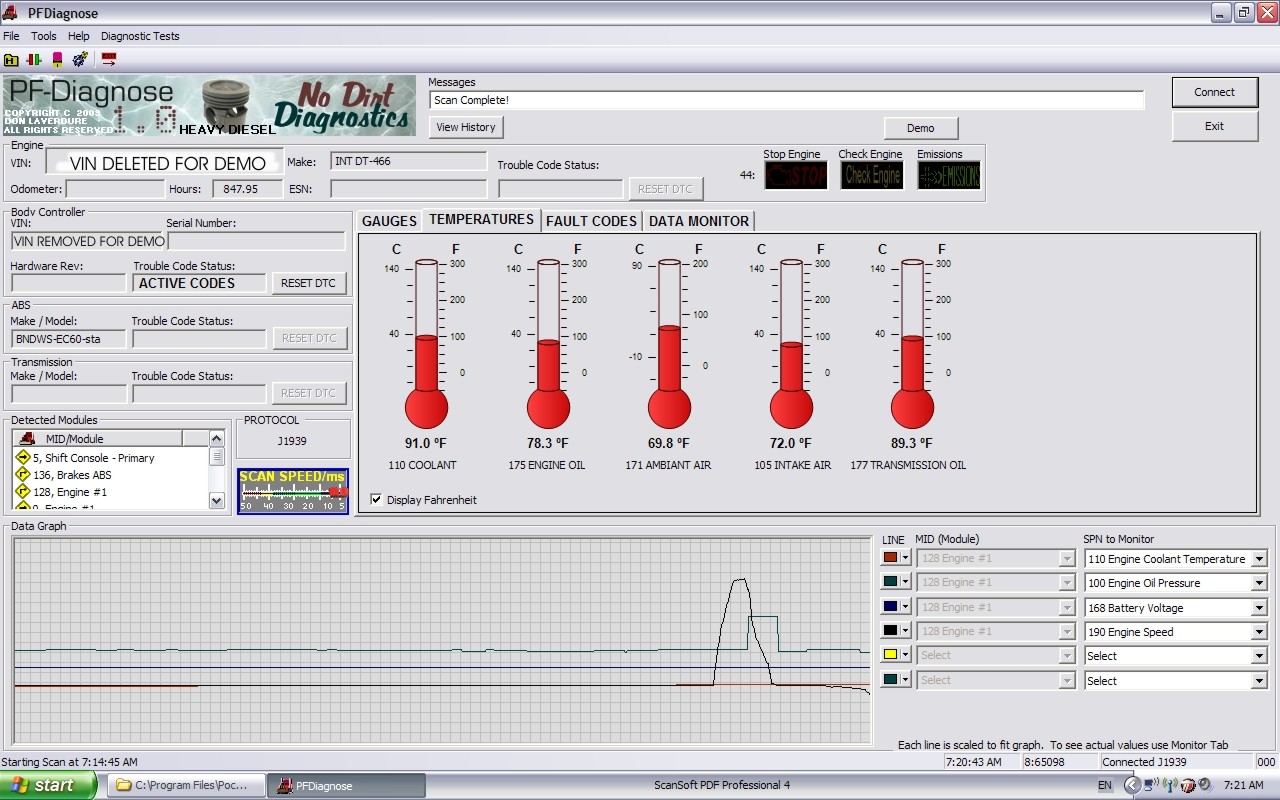

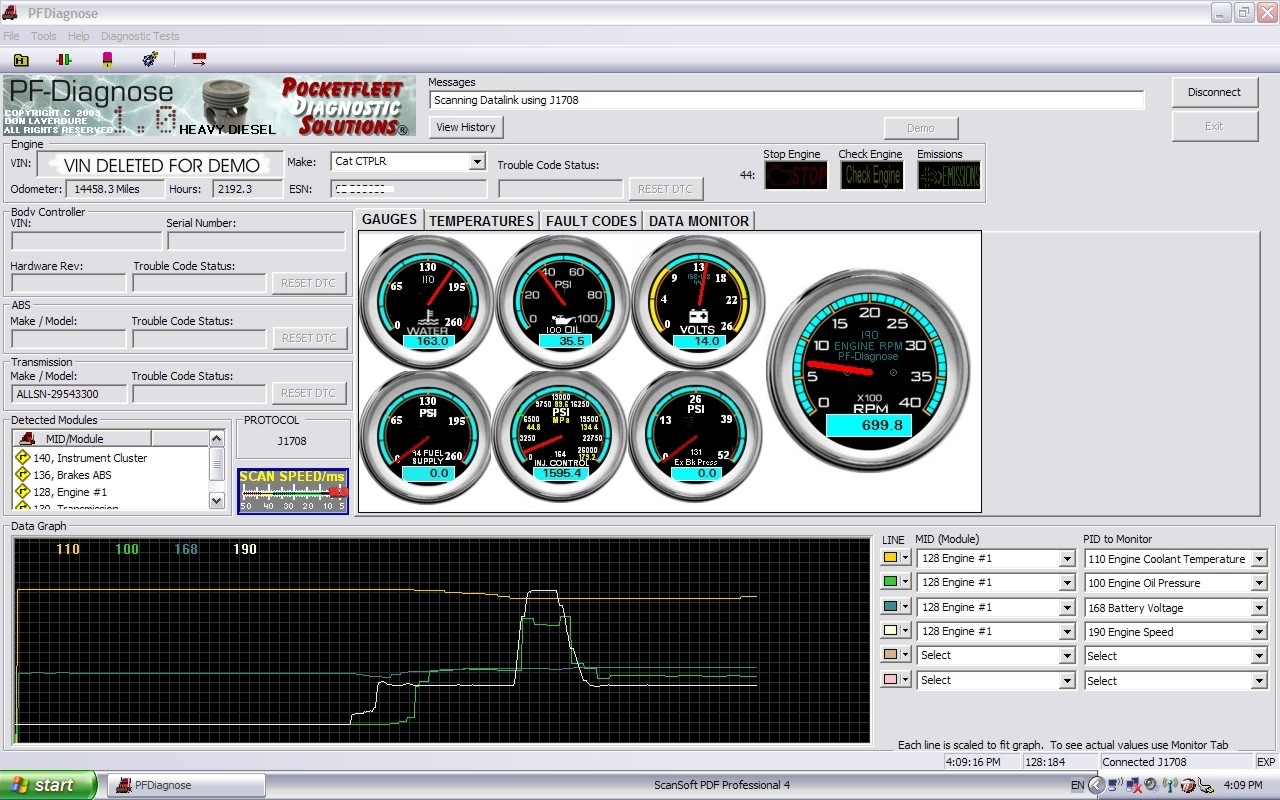

Windows XP Screen Shot

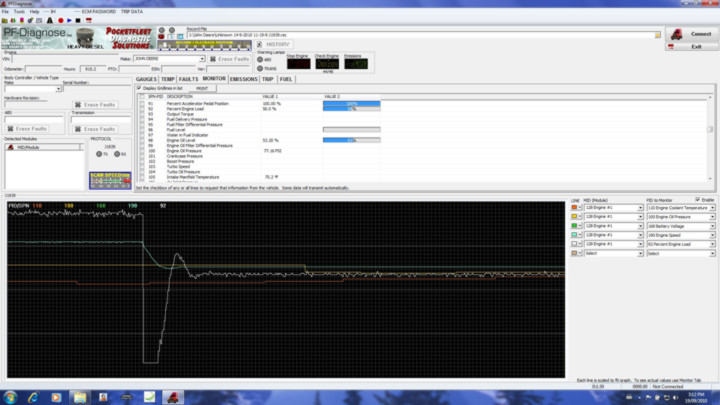

Windows 7 Screen Shot reduced 65%

CUSTOMER TESTIMONIALS

This is Diagnostic software for assistance in diagnosing faults and clearing fault codes.  It is designed for fleet and road service technicians by a fleet technician.  it requires a basic knowledge of diagnostic scan tools and an understanding of electronic automotive systems.

Our Heavy Truck Adapter supports J1587/J1708 and J1939 and is both low cost and reliable



   PFD-100A3 ADAPTER

J1708/1587 and J1939 Smart Adapter with Drivers

9-6 PIN Cable

9 PIN Cable

Serial extension and Serial to USB adapter

DIAGNOSTIC ADAPTER AND CABLES



  PF-DIAGNOSE KIT

J1708/1587 and J1939 Smart Adapter with Drivers

9-6 PIN Cable

9 PIN Cable

PF-Diagnose OEM Edition

Serial Extension and Serial to USB Adapter and drivers all included

TRUCK DIAGNOSTIC FULL KIT

SOFTWARE AND ADAPTER KIT

SOFTWARE ONLY

Use your own adapter

Recommended Aftermarket Adapter For Heavy Duty or ISO15765 OBD-II (CAN)

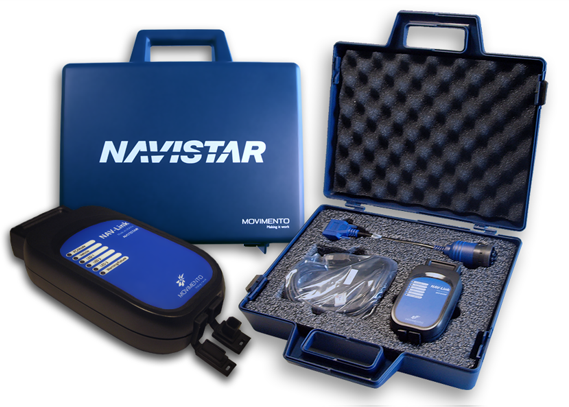

Navistar NAV-Link



FEATURES:

  • RP1210A/B and J2534 API support

  • Protocol coverage for automotive and heavy duty vehicles:

    • Price: $795.00 USD

    Where to buy:

    https://secure.movimentodl.com/proddetail.php?prod=NAV-Link&cat=1063

    Supports Heavy Duty J1587/J1708/J1939/ PLUS OBD-II ISO15765/ISO9141 and ISO14230

    MOVIMENTO ADAPTER NOTES



    *The PFD-201 Cable is limited to J1939 and CAN (ISO15765) on Movimento Adapters with the light blue DSUB, for more protocol coverage with these adapters, contact Movimento for the proper DSUB and cable.

    *J1850 only supported on Movimento Puma 2 US Version Part Number 120-0201-002





    COMPARE OUR SOFTWARE TO THE COMPETITION

    Our Software is the lowest cost with the most features making it the BEST value by far!

    Vehicle tests are OEM-specific functions. Due to security and safety concerns, PF-Diagnose does not allow you to perform some vehicle tests.

    If you need to perform Specific vehicle tests you will need to use the OEM application.

    CHECK OUT THESE FEATURES AND SCREEN SHOTS!

    Pricing Options and accessories available from the Download Page

    LIST OF  FEATURES

    Connects to North American Heavy Trucks and equipment Medium Duty and Light Duty including Domestic and Imports from 1996 to present. You can not run OEM tests or change Parameters with this software in J1708 or J1939, Only has Limited Mode 8 Control.

    Tested On:

    • 2012 Isuzu NPR

    • Cummins ALL

    • Detroit Diesel ALL

    • Caterpillar On Hwy

    • John Deere 4045H Aux Engines

    • John Deere Agricultural Farm Tractor

    • John Deere 644K_Wheeled Loader

    • Mercedes 900

    • Mercedes 4000

    • Case 540 and 620E

    • Bendix

    • Wabco

    • Eaton Transmissions

    • Eaton VORAD

    • Eaton ABS

    • Freightliner

    • International

    • Sterling

    • Peterbilt

    • Trackless

    • Carleton

    • VW Midsize Truck

    • Volvo 770 Grader

    • 2011 Volvo FH12

    • and more

    OBD-II Edition:

    • All Domestic w/OBD-II

    • All Imports w/OBD-II

    • 1996 to present

    • Gasoline and Diesel

    • Medium Duty and Light

    Tested Adapters:

    • IC4

    • Dearborn (ALL)

    • Movimento (ALL)

    • Nexiq (ALL)

    • Inline (ALL)

    • PFD 100A3

    • Cat Adapter

    • Navistar

    • EZ-Tech

    Works with any

    RP1210 A or B

    Adapter



    OBD-II Edition works with Adapters that support J2534 Pass Thru

    • Movimento Puma 2

    • Movimento NAV-Link*

    • Movimento NAV-CoM*

    • Nexiq USB-Link

    • Nexiq WVL2

    • Dearborn DPA 4+*

    • Dearborn DPA 5

    • Noregon*

    • Cardaq*

    *Check manufacture specs for protocol coverage





    The new Dual Protocol option in version 1.1.0 or better only functions with an adapter that can handle dual protocol mode.



    Tested Dual Mode Adapters

    • All Movimento Adapters

    • Dearborn DPA 4/4+ and 5

    • Cummins Inline 5

    • Nexiq USB-Link



    KNOWN LIMITATIONS

    • Does not read Allison DTCs prior to GEN 4

    • Does not read Hino DTCs as of version 1.2.0.8

    • Does not support Proprietary OEM PIDs in Monitor.

    • Operates in Windows XP, Vista, or Windows 7

    • Up-To-Date Diagnostic Trouble Codes

    • Built in basic code help for major systems

    • DPF and Emissions Codes

    • OBD-II Mode 8 DPF Regeneration**

    • OBD-II Mode 8 Evaporative Tests**

    • Mode 6 Tests**

    • ISO15765 CAN**

    • J1850 PWM and VPW **

    • ISO9141**

    • ISO14230 KWP2000 **

    • Up to 20 PID Freeze Frames**

    • Mode 6 Diagnostic Tests**

    • Readiness Display Tab**

    • Supports GAS or Diesel**

    • Emissions Monitoring Tab

    • Trip Totals Tab with (Trip Reset*)

    • Auto DTC detect for ALL Modules

    • Erase Fault Codes

    • Check Engine Light status

    • Supports J1587/J1708 and J1939 Protocols

    • SAE Standard codes current to 2010 for all models

    • Selectable color Graph with up to 6 PIDs charted at the same time

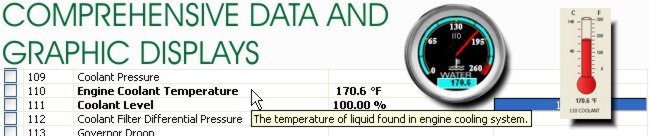

    • Easy to see graphic Gauges with digital panel

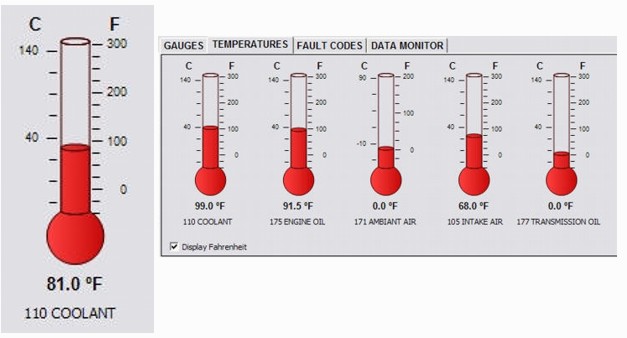

    • Thermometer Displays with digital readout

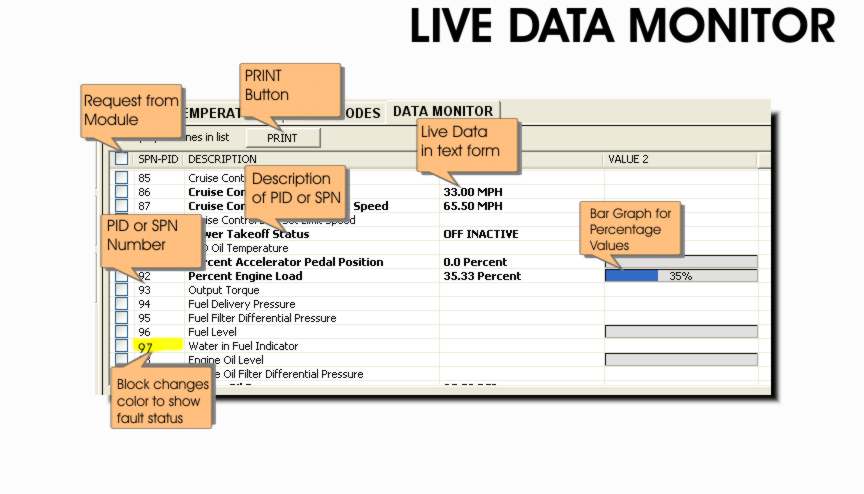

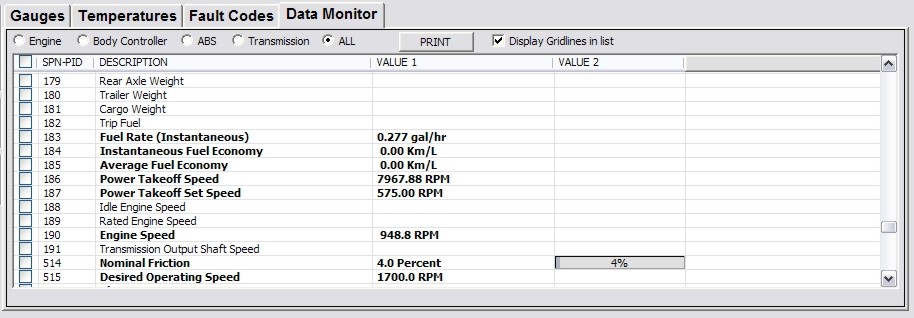

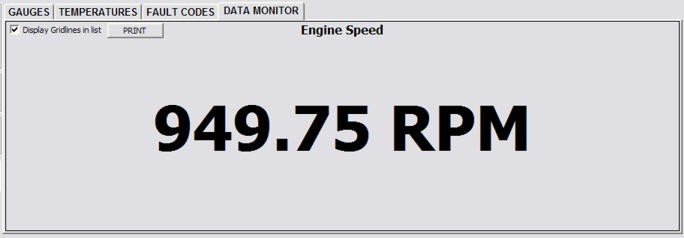

    • Data Monitor screen

    • Emissions Screen

    • Fuel Reports Screen

    • Trip Reports Screen

    • All Tabs with PID Lists are printable

    • Module Sniffer tool

    • *OEM Flash Codes for North American Heavy Duty

    • *OEM Code Definitions for GP Outputs and emissions

    • Uses TMCs RP1210 Standard for communications adapter

    • Supports J2534 Pass Thru Adapters**

    • Print DTC Reports

    • Print Current Parameter values

    • USA, UK, or Metric displays

    • Help files

    • *32mb OEM DTC Code definition database and growing

    • *Code Lookup Feature Look up codes by entering the PID, SID or SPN and FMI

    • Code Lookup for OBD-II J2012

    • keeps a history for each VIN number so you can see codes it had last time it was connected or add notes to remember the next time you connect

    • *J1939 Bulkhead Module Codes

    • *Record and Playback Session allows recorded sessions to be played back in relative real time.  Record your vehicle and let others see what you saw without being connected to the vehicle.

    • *International DT and MaxxForce series:  KOEO Standard and Injector tests or  Turn road speed limiter on or off with ECM Password entry.

    • International Electrical System Controller codes

    • (1)One year FREE Updates and support New updates and features added as the become available.  Subscribe for continued free updates

    • Key never expires

    • New Code Definitions and diagnostic tests added as they become available Current version contains thousands of code definitions as well as all codes up to Forth Quarter of 2010 for the 2011 model years

    • OBD-II support will be introduced in the next major version starting with J1850 protocols for Allison, GM, and Ford including many medium and light vehicles. (cars between 1998 and 2009)

    • (1) Email Support Only, We will provide 1 year of free support via email only.  Additional support may be subscribed to through our support and update subscription.  If you have any problems with our software we will work with you to correct it and provide free updates during the support term.  Upgrading from Basic to Full does not change the original support start date or support term.  Updates and Support does not include upgrades to different editions,  If you have a Basic Version, you may only update that version.  Diagnostic adapters and cables have a 90 day warranty, replacement only, send us the defective device and we will send a new one, there must be no signs or evidence of abuse, warranty is for manufacturer defects only.

    • UPGRADE POLICY  You may upgrade by requesting an invoice for the difference between what you paid for your current version and the list price of the upgrade version, that is you may upgrade by paying the difference in price.  This offer is valid for 30 days from the date of purchase only.  After 30 days you may upgrade by paying the difference plus 10% for the upgraded version and  IT MUST BE INSTALLED ON THE SAME PC.

    • Licenses are per-installation only, if you want to install PF-Diagnose on 2 PCs, you need to purchase 2 licenses.

    * = (Not available in basic generic codes version (SAE))

    **=Feature only available in PF-Diagnose HD with OBD-II Edition only

    Other manufacturer trade names are register trade marks of those individual companies and used here only to identify those engines and systems  not as an endorsement of any kind.



    PF-Diagnose uses J1939 and J1587/J1708 protocols for diagnostics, some vehicles may only have limited connectivity in these protocols or may not support them at all.  Please check your service manual or contact PF-Support for a list of confirmed vehicles.  If your vehicle uses K-Line, L-Line or OBD for off-board diagnostics, this program may not work.



    Some data available in the OEM software is sent via Proprietary packets or on another unsupported protocol therefore you may not get all of the data you would otherwise get from the OEM software for example Audit Trails and Expanded trip information may not appear.  This is not a defect in the software, no generic software will likely have access to those messages.



    SCREEN SHOTS

    John Deere Sample Connection Engine Model 4045H

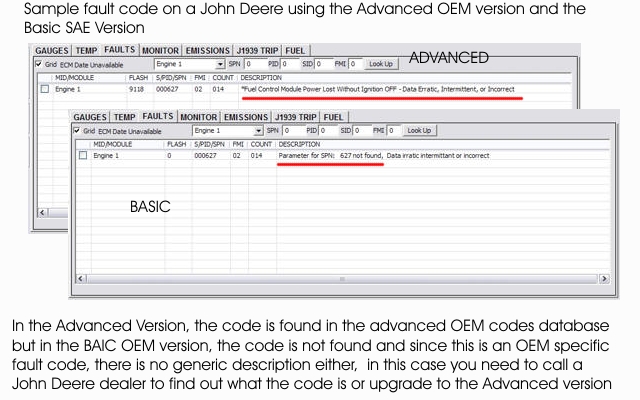

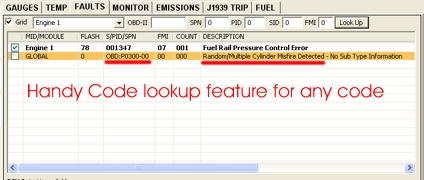

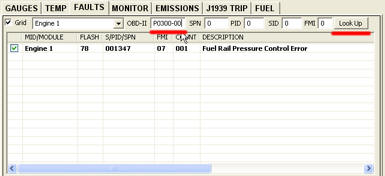

    CODE LOOKUP FEATURE (FULL EDITIONS ONLY)

    You can look up fault codes by entering the SPN/PIS/SID/FMI and soon in the next version OBD-II codes in the faults tab to get a description of the code.  Looked up codes are amber








    CLICK ON THUMBNAIL TO SEE FULL SIZE SCREENSHOT (Screen shots are version 1.0.9.0)

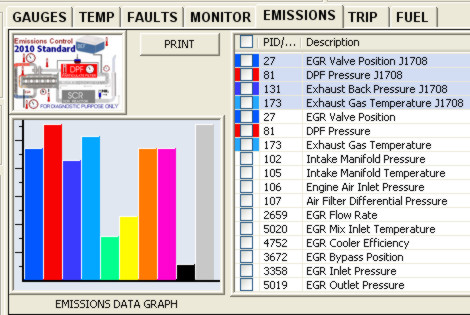

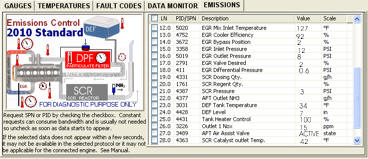

    NEW for 2010   EGR and SCR Emissions system monitoring for DEF Urea Injection

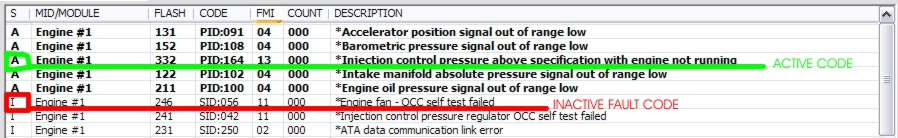

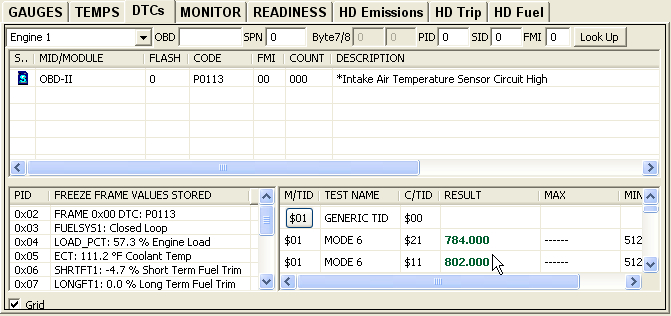

    OBD-II Edition Fault Code and Freeze Frame screen with Mode 6 Test Results Display

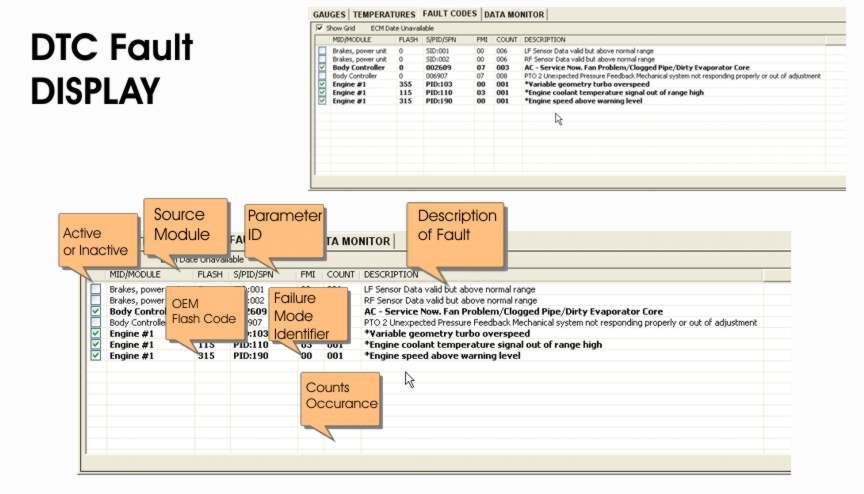

    Example of Freightliner Body Controller Codes

    MODULE         Status SPN      FMI  COUNTS  DESCRIPTION



    Body Controller A 0 001550 05    001       A/C Clutch Output Fault Current below normal or open

    Body Controller A 0 000882 05    001       Tail Lamp/License Plate Lamp Circuit (Brown) Current below normal or open

    Body Controller A 0 000879 05    002       Left Turn Lamp Circuit (Yellow) Current below normal or open

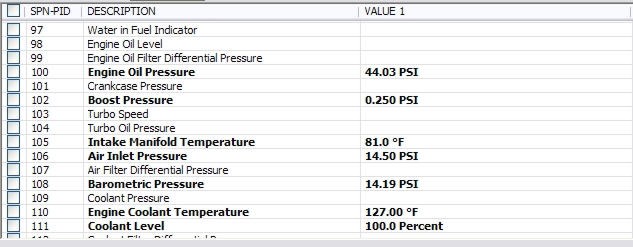

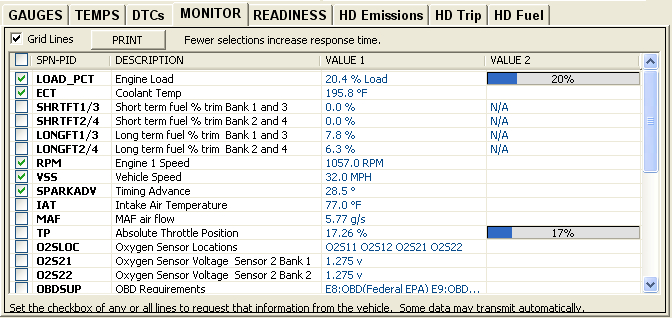

    OBD-II Live Data Monitor





    THIS SOFTWARE HAS WORKED WITH ANY J1708 or J1939 TRUCK or EQUIPMENT INCLUDING OFF-ROAD WE HAVE TRIED IT ON

    WE EVEN USED IT TO DIAGNOSE AN INDUSTRIAL JOHN DEERE ENGINE, a CASE Backhoe

    AND Long Haul Hwy Tractors, Our OBD-II edition has been tested on 2002 Ford, 2005 Ford, 2008 Ford and 2012 Ford Gasoline engines, 2006 and 2002 Ford Diesel Engines, 2005 Chrysler Diesel Engines, 2008 and 2005 GMC Duramax Engines, 2006 Toyota and other imports.



    • IF YOUR EQUIPMENT needs  EITHER OF THESE CONNECTORS, PF-Diagnose will likely connect.

    • 6 PIN Deutsch (J1587/1708 )  9PIN Deutsch (J1587/1708 and J1939)

      or also available is the 9 PIN to 6 PIN adapter that lets you use the 9 PIN cable on vehicles with a 6 PIN plug



      6 PIN  J1708                                                       9 PIN J1708 / J1939

      Connector may vary, photo is an example only



    EVERYTHING YOU NEED TO START DIAGNOSING!

    Check out our Diagnostic Solution Package below or Email for a custom solution

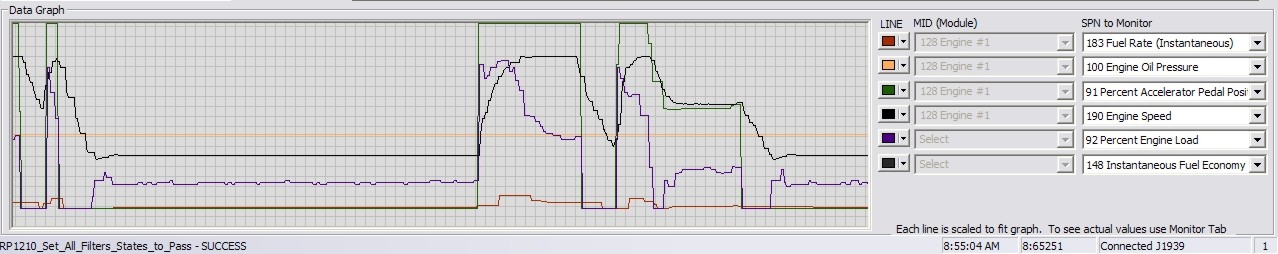

    Sample Graph view Showing Engine Load, Engine Speed, And Engine Oil Pressure during engine revs in neutral.

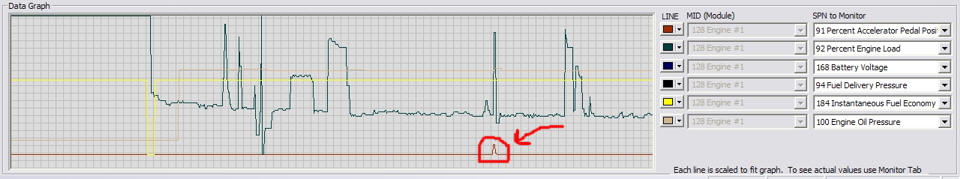

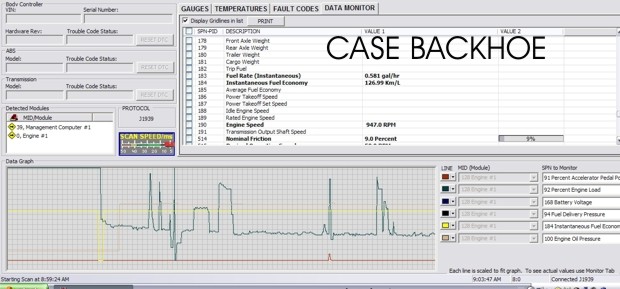

    Case Backhoe while working the backhoe, note the blip in the accelerator pedal line at the bottom

    This unit had an intermittent fault with the accelerator pedal wiring that showed up when the machine was worked.



    RP 1210 Adapters supported!  PF-Diagnose supports RP1210 Adapters such as DPA4. Cummins Inline series,

    International or Ford IC4, DDL, B&B HDV series, Nexiq USB-Link... and more.  We do not lock you in to a specific hardware adapter.







    How much can diagnostic software cost?

    In many cases, OEM software will only connect to one system and requires a special or specific adapter so the costs can be huge.

    OEM Software does have the advantage that parameters can be changed so ask yourself if the advantage justifies the cost.

    Or

    THE POCKETFLEET SOLUTION

    Get a Vehicle Interface, Connector ,

    PF-Diagnose, all cables needed

    all  ready to go... Well under $1000.00

    Delivery date depends on stock supplies.

    for details and delivery estimate.

    Or

    PF-Diagnose ALL ECM'S & ECU'S Software ONLY

    for those that already have a diagnostic PC and Protocol Vehicle Interface Adapter

    Download it today! $189.95 or $295.00 for FULL Version. No need to wait for the CD to arrive, we offer direct downloads from our server

    while you wait for the CD to arrive once payment clears.

    12 Months of free Updates and support included

    Or

    Check out our other options and accessories

    GO TO DOWNLOAD PAGE



    SRP=Suggested Retail Price.
